Israfel

Israfel

$64.99
$64.99 $64.99
Sale Sold out
Shipping calculated at checkout.
Color
Kit

Frequently Bought Together

Israfel
+
Wrist Rest New
Israfel $64.99
Wrist Rest New $2.99
Total:$67.98
$74.98
Save 5% off
Israfel
+
Switch N²
Israfel $64.99
Switch N² $4.99
Total:$69.98
$69.98
Save 5% off
View full details

🧱 Description

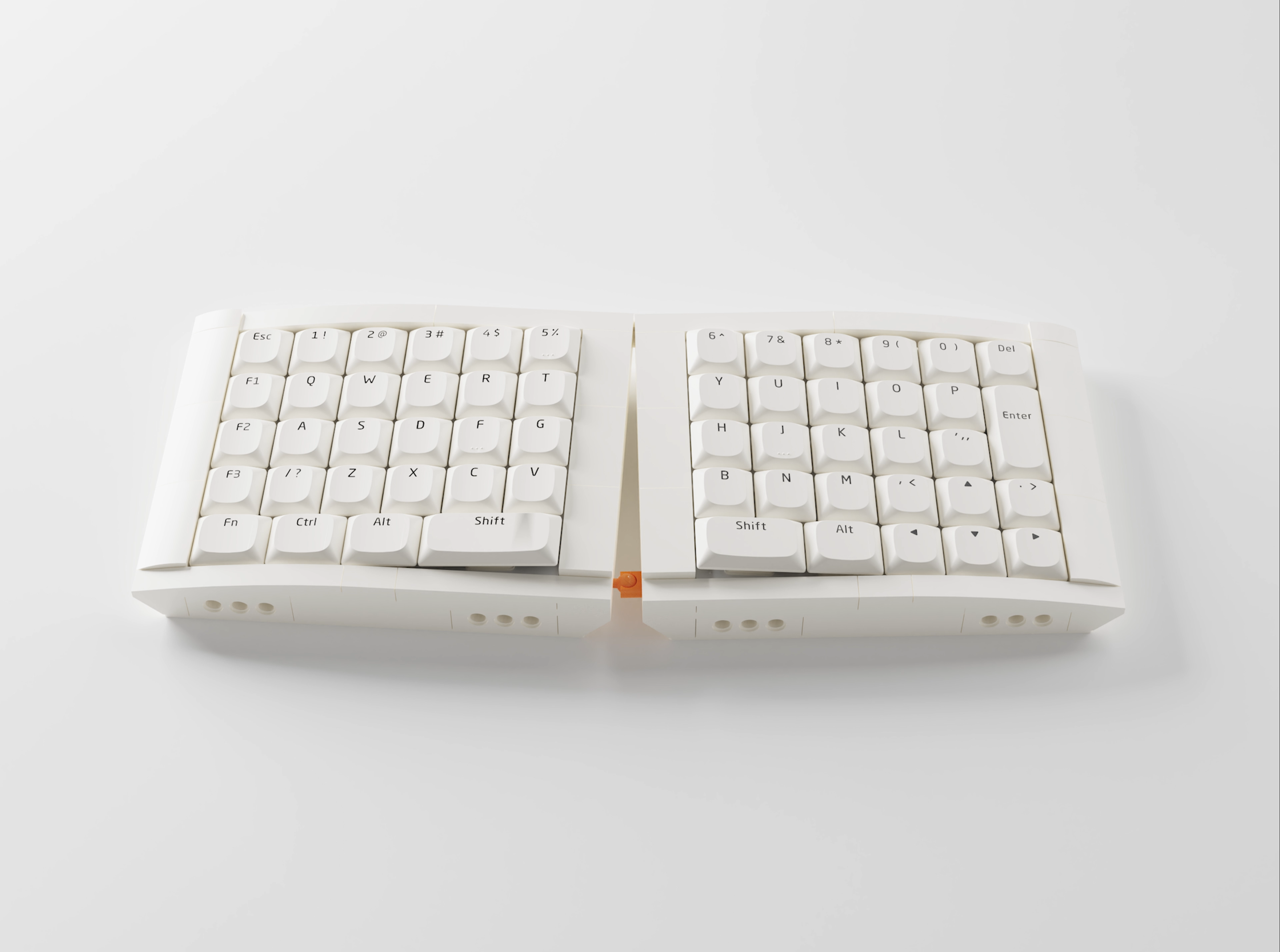

#7 Israfel, an ergo-split 50% keyboard

We introduced a low-profile system and an exclusive 50% ortho layout into our iconic building block architecture for the first time. Combined with the adaptive gasket mount and the hinge-split design for multidimensional angle adjustments, Israfel achieves exceptional ergonomic mastery. The twin angels black & white Israfel are two completely different souls, not just two colorways. White Israfel full kit comes with custom linear switches: N² depth charge (white), while Black Israfel has tactile N² land mine (black).

Core56 Low-Profile

The LP switches, LP stabilizers, and LP hot-swap sockets involved in the low-profile system are co-developed with Kailh, along with custom LP keycaps from KeyTok. These components represent the highest industry standards for 25Q4. If you choose the Base Kit, please ensure compatibility with your switches. The plates are 1.2mm FR4 in Titanium White in 2 pieces. The foam is canceled for a better sound. A 14-pin SH1.0 wire is applied for inter-PCB data transfer.

What's In the box:

Link to Part

Full Kit $64.99
02007 Case Israfel b/w ✔️
03007 Core56 b/w ✔️
04004 Base Cable C-C ✔️
05004 Stabi LP ✔️
06002 Switch N² linear/tactile ✔️
07004 Keycap LP b/w ✔️



01007 Kit Israfel

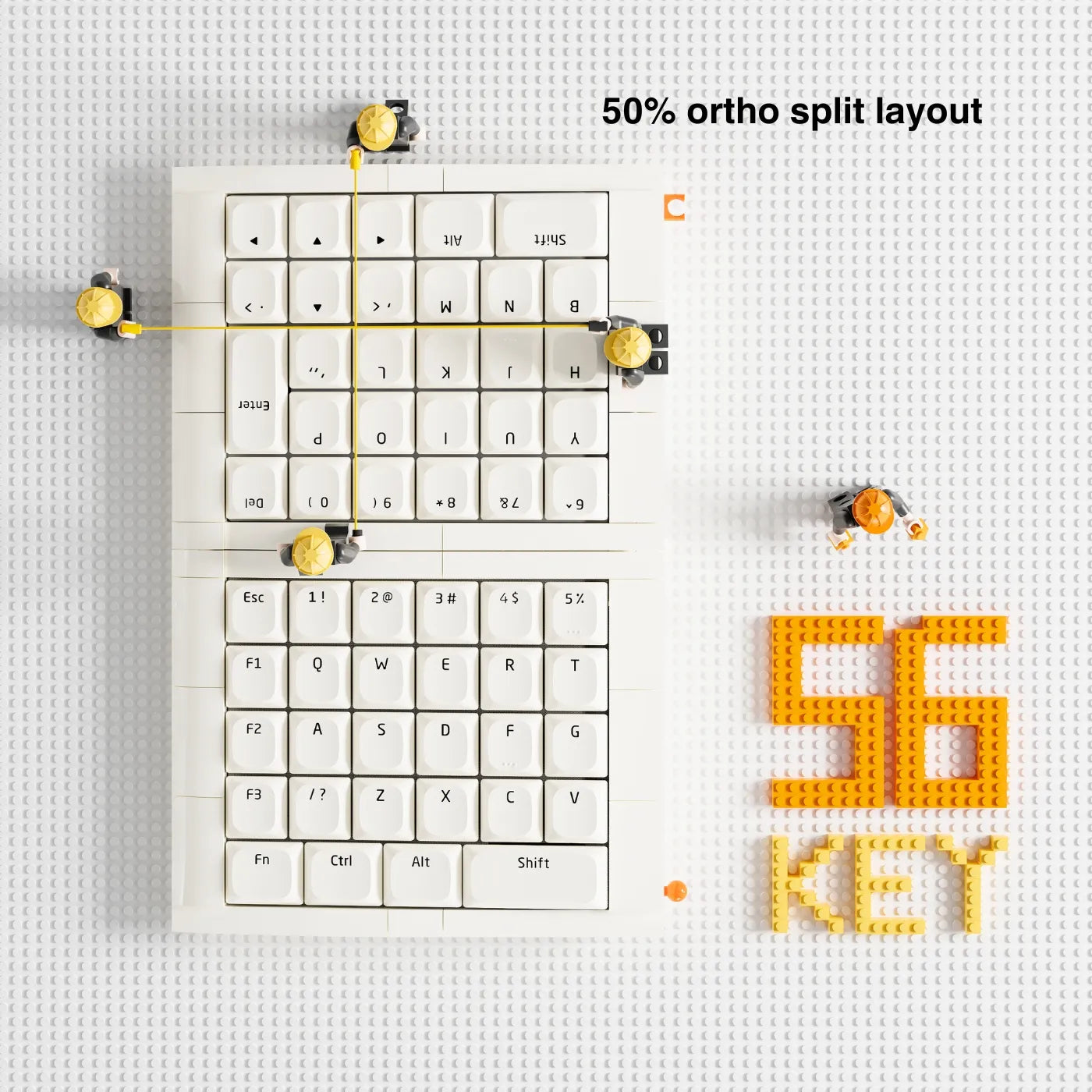

Low-Profile｜an ergo-split 50% keyboard｜Modular

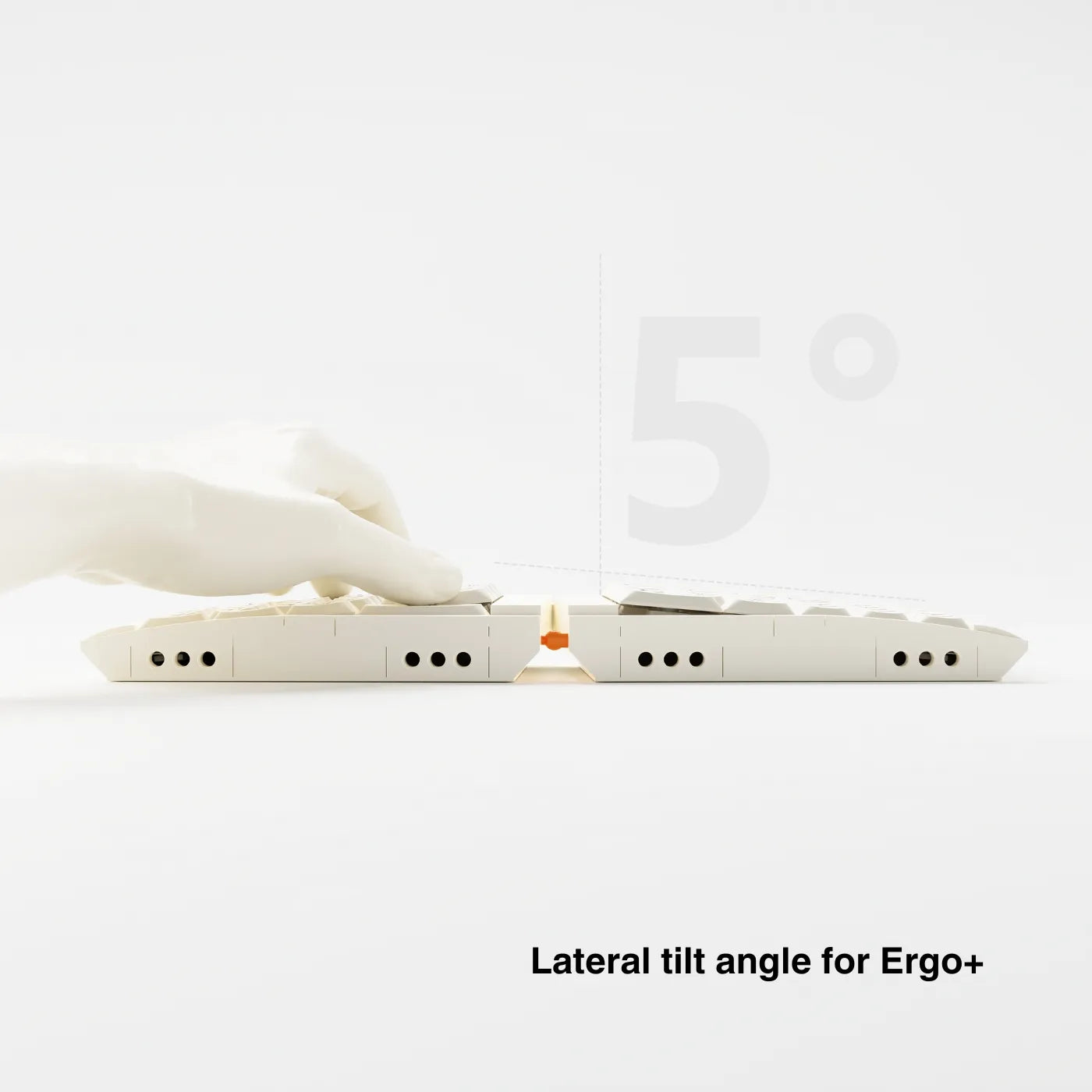

Hinge-Split design with multi-dimensional angle adjustment.

We introduced a low-profile system and an exclusive 50% ortho layout into our iconic building block architecture for the first time.

Combined with the adaptive gasket mount and the hinge-split design for multidimensional angle adjustments, Israfel achieves exceptional ergonomic mastery.

Core56 Low-Profile

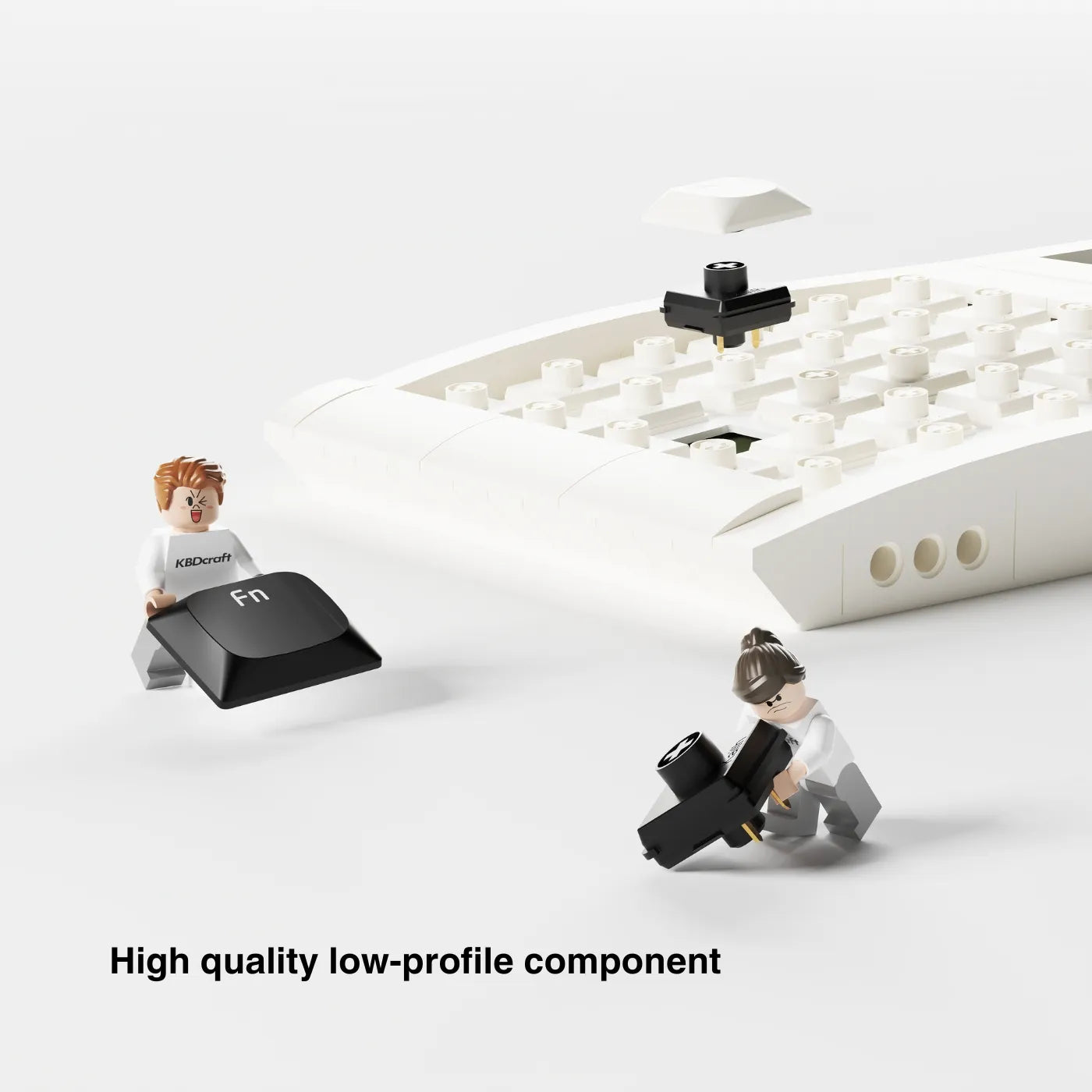

  • The LP switches, LP stabilizers, and LP hot-swap sockets involved in the low-profile system are co-developed with Kailh, along with custom LP keycaps from KeyTok.
  • If you choose the Base Kit, please ensure compatibility with your switches.
  • The plates are 1.2mm FR4 in Titanium White in 2 pieces. The foam is canceled for a better sound. A 14-pin SH1.0 wire is applied for inter-PCB data.
PRE-BUILT

N² Depth charge

Type: Linear Housing / Stem: POM/POM Travel Total: 2.8mm Pre-travel: 1.2mm Operation Force: 50gf Life: 50M cycles
CUSTOM KIT

N² Land Mine

Type: tactile Housing / Stem: POM/POM Travel Total: 2.8mm Pre-travel: 1.6mm Operation Force: 45f Tactile Force: 50gf Life: 50M cycles
Card 1

Card 1

Card 2

Card 2

Card 3

Card 3

Keyboard Comparison

Adam X
Adam X
Kit Lilith Q
Kit Lilith Q
Israfel
Israfel
LEGO Compatible
Layout 20%/60%/80% 60%/65%/75% 50% Ortholinear Layout
Keys 17/64 60/68/77 56
Connectivity USB-C/Wired USB-C/Wired USB-C/Wired
System Support Win/Mac Compatible Win/Mac Compatible Win/Mac Compatible
Water Resistance Level Not Water Resistant Not Water Resistant Not Water Resistant
Mechanical Keyboard Switch Model kailh_rgb_red kailh_rgb_red Linear Switch Engine N2 Depth Charge
Keycaps Type KOP Keycaps KOP Keycaps Low-profile Keycaps
Hot-swappable: Yes Yes Yes
Switch S² Engine Gen.2 S² Engine Gen.2 Kailh Custom Linear Switch Engine N2
QMK/VIAL
Keyboard backlighting color support RGB RGB RGB

1x figure for all orders, 2x figures for orders over $65

zombie

zombie

Steve

Steve

Steve2

Steve2

Steve3

Steve3

Skelet

Skelet

Alex

Alex

Enderman

Enderman

44
Verified Reviews

FAQ

Why KBDcraft?

KBDcraft innovates tools, toys, and electronic gadgets by reimagining them in new forms.
At the heart of our portfolio are brick-based keyboards compatible with LEGO® bricks.

Where are the assembly instructions?

You can find the instructions on the “Downloads” page in the navigation bar. If you need further assistance, please contact our customer service team.

How to clean the keyboard

The Ultimate Quick Guide to Cleaning Your Keyboard

What components are included in the Israfel keyboard kit?

The kit is exceptionally comprehensive, comprising the following:
Hardware core: LEGO-compatible housing bricks, Core56 system PCB with baseplate, bright yellow cables, and bumpers/washers.
Switches and keycaps: Kailh low-profile switches, switch stabilisers, and original premium low-profile keycaps.
Tools and Extras: Keycap/switch puller, instruction manual, and signature LEGO minifigures (quantity determined by order value).

May I replace the switches with my preferred type?

Yes. This keyboard features a hot-swappable PCB design, allowing free switch replacement, and incorporates per-key RGB backlighting.
